Brand Name : | OEM |
Model Number : | WInlay-02 |
Certification : | ISO CE ROSH |
Payment Terms : | Western Union, MoneyGram, T/T |
Supply Ability : | 1000000pcs/year |
Delivery Time : | 7-10 days |

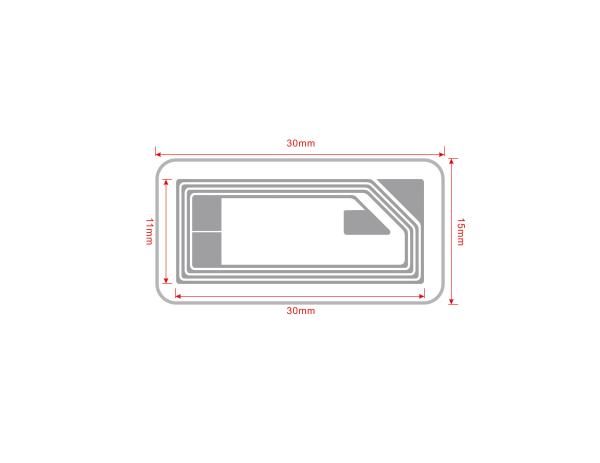

Smart Card Rifd Tag Roll Nfc 213 215 216 Hf Rfid Wet Dry Inlay 30*15mm
RF Protocol | ISO14443A |
Frequency | 13.56MHz |
Chip | 213,215,216,etc. |
Antenna Material | Aluminum Al (30μm) + PET (38μm) + Al bridge (10μm) |
Capacity | Depend on chip options |
Working life | 100000 times / 10 years |
Antenna Shape | Round or square |
Dry inlay | 12*18mm, 14.5*14.5mm, 76*45mm, dia 20mm, 40mm etc |
Thickness | 0.07mm (chip location: 0.23mm) |
Working temperature | -20℃ to +60℃ |
Storage temperature | -25℃ to +65℃ |
Packing | 1000pcs/roll or by customized |
Nominal Read Range | 2~6cm depending on antenna geometry and reader configuration |
Application | Identification,Card, Logistics, Library, Asset management, Payment, Access control |
![]() |
